AutoLöc's Universal Heavy Duty Automated Power Hinge Kit for Doors, Trunks, Hoods, and More! (Single Door, Single Motor Kit)
INCLUDES:
- Heavy duty 200 lb 8” stroke 12V linear actuator

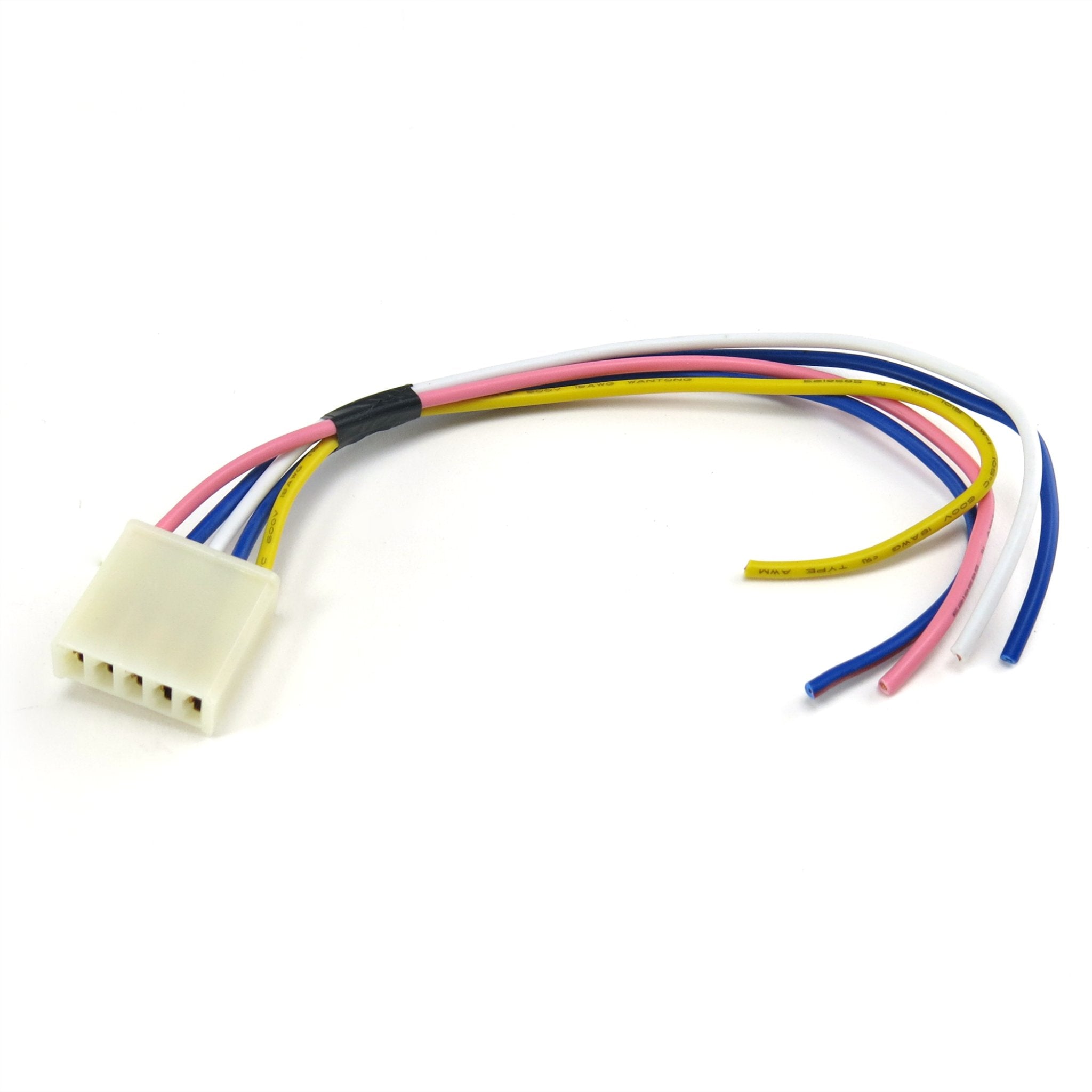

- 12V rocker switch with wiring harness
- 2 x 40 Amp relays with relay sockets

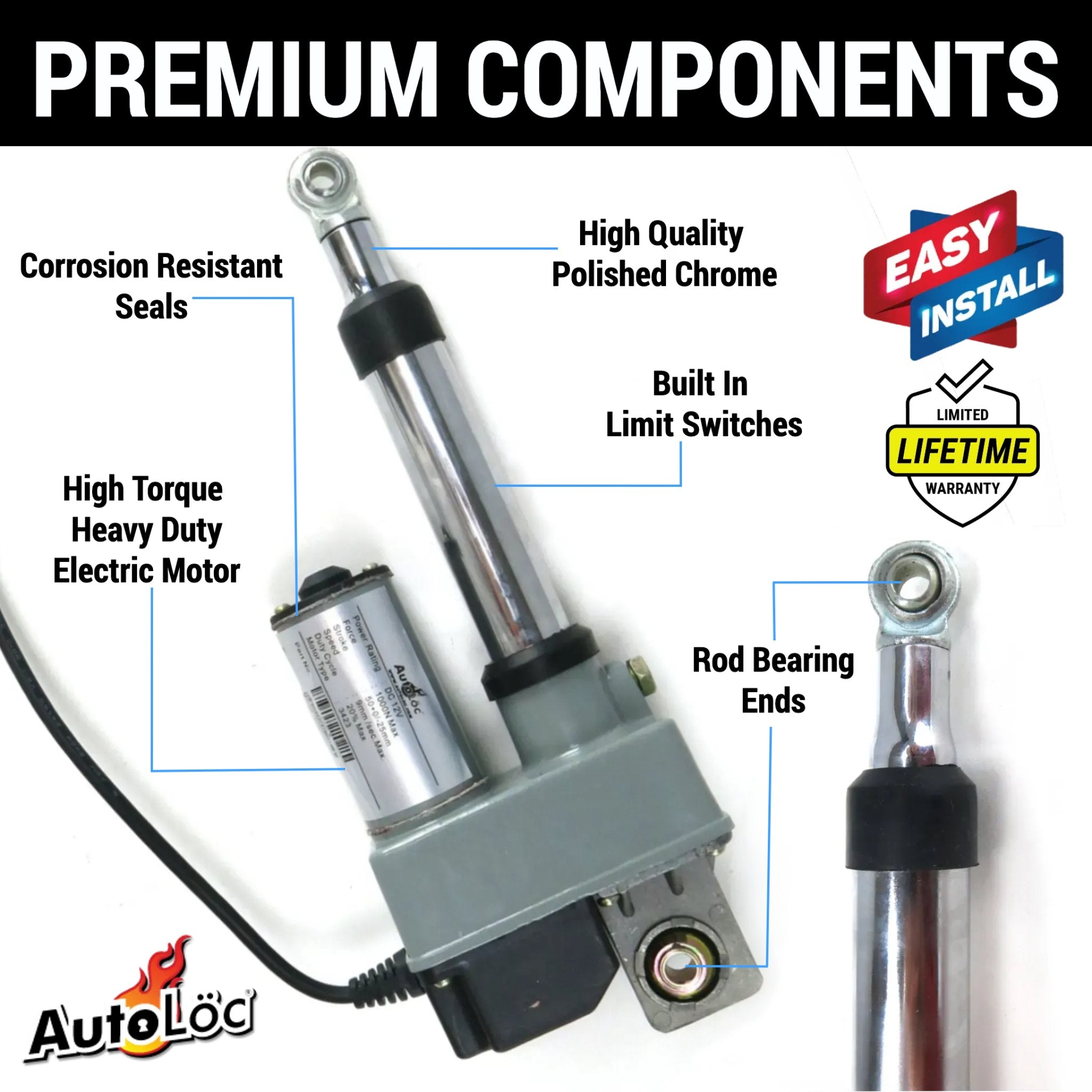

FEATURES:
- Fully Adjustable

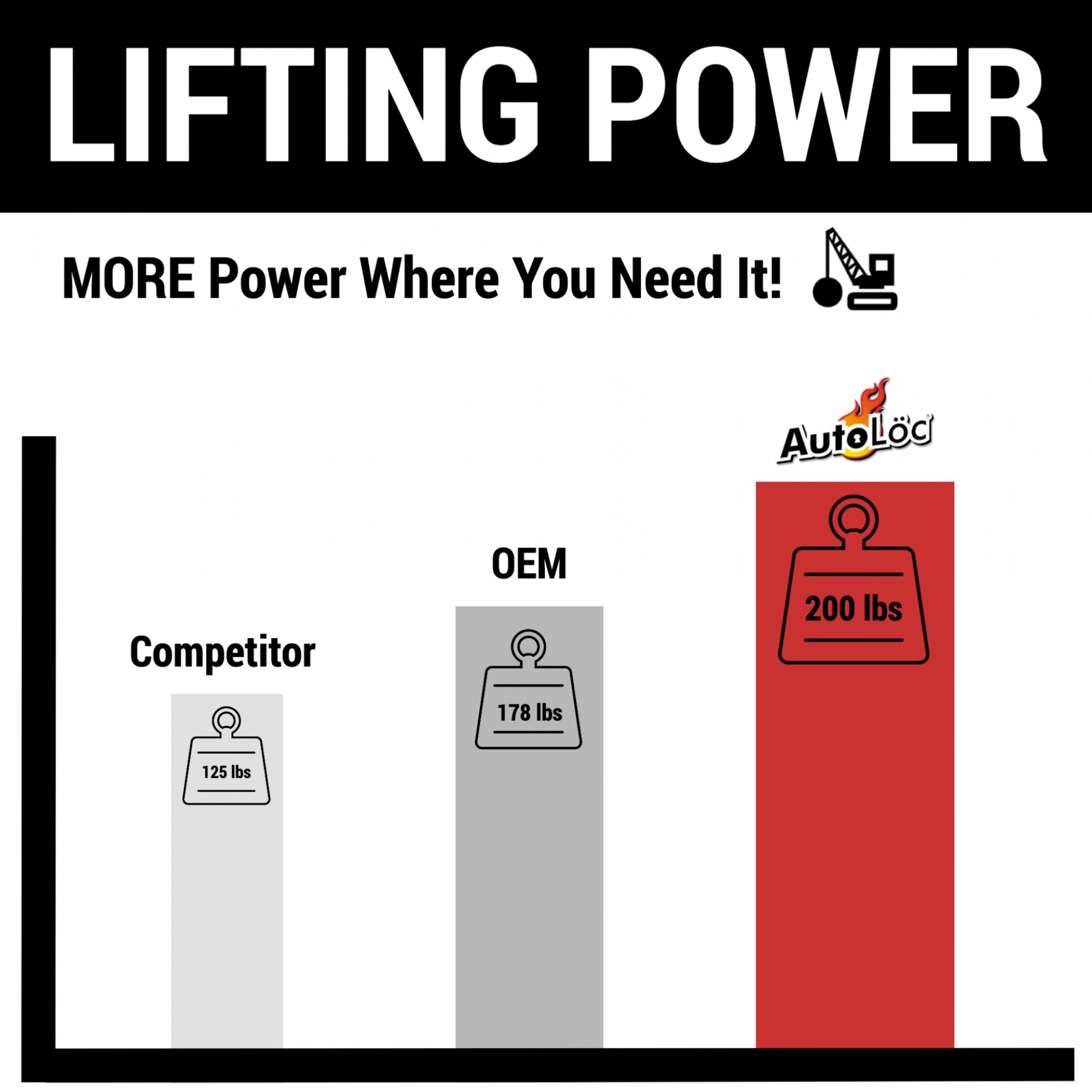

- 200 lb Lift Capacity
- 8 Inch Travel/Stroke
- Heavy Duty High-Torque Screw Drive Motor
- Built In Limit Switch
- Permanently Sealed & Lubricated Assembly
- Steel Body
- Metal Bearing Mount

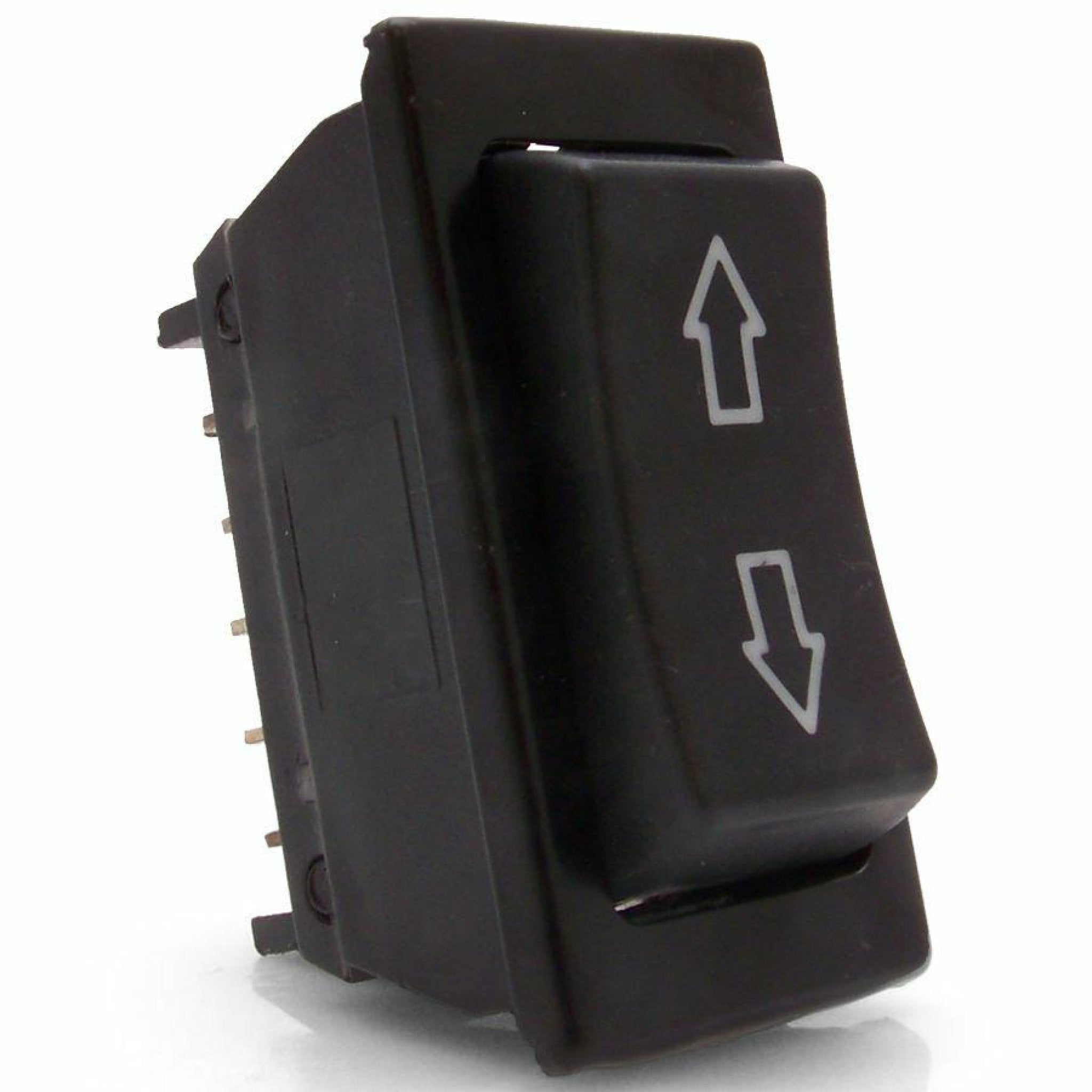

This kit allows you to easily open and close your door, trunk, hatch, and more with the simple push of a button. Push the switch up arrow to open, or down arrow to close. Upgrade to remote control by adding AutoLöc's Remote Control Keyless Entry System. (SKU: 9760)
AutoLöc linear actuators include built in limit switches, which allows you to program custom run times and push/pull settings when combined with an AutoLöc motor control module. Motor control modules SOLD SEPARATELY. See optional motor control module SKU numbers listed below.

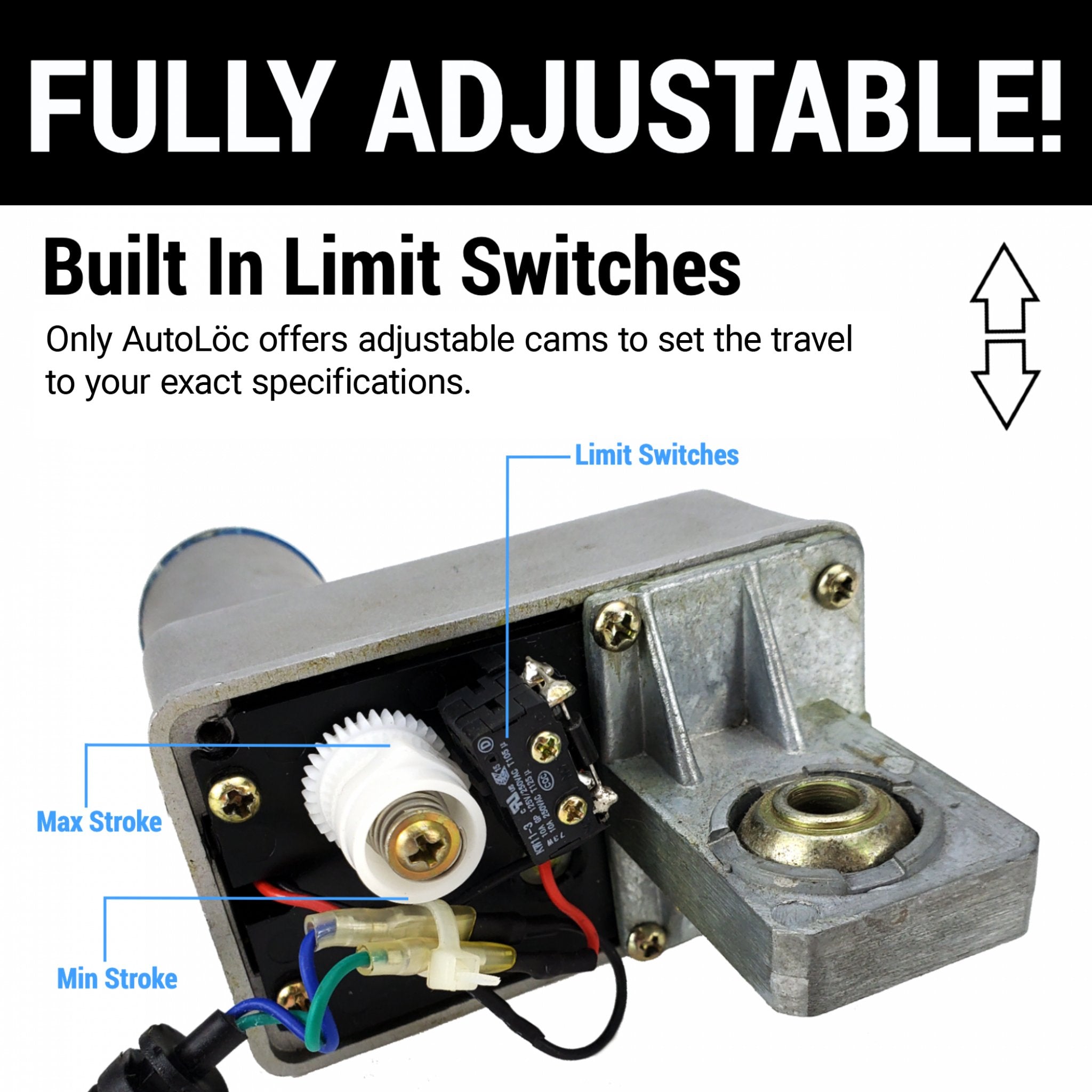

***PRO TIP*** The stroke is adjustable. i.e. Setting the start/stop points on a 8" motor can be limited to 4" by setting these points. They are located below a cap on the bottom of the motor. (See Fully Adjustable Image).
AutoLöc Motor Control Modules:
2 Presets (SKU:9787)
4 Presets (SKU:9788)
6 Presets (SKU:9789)
8 Presets (SKU:9790)
* Free Live USA Technical Support and a Limited Lifetime Warranty.
---------------------- :: Linear Actuators
# of Actuators :: 1 Included
Max Weight :: Lifts up to 200lbs
Voltage :: 12 Volt
Motor :: Heavy Duty Torque
Method :: Screw Drive
Adjustable :: Yes
Limiter :: Built In Switch
Travel/Stroke :: 8"
Connecting Ends :: Ball Bearing Rods

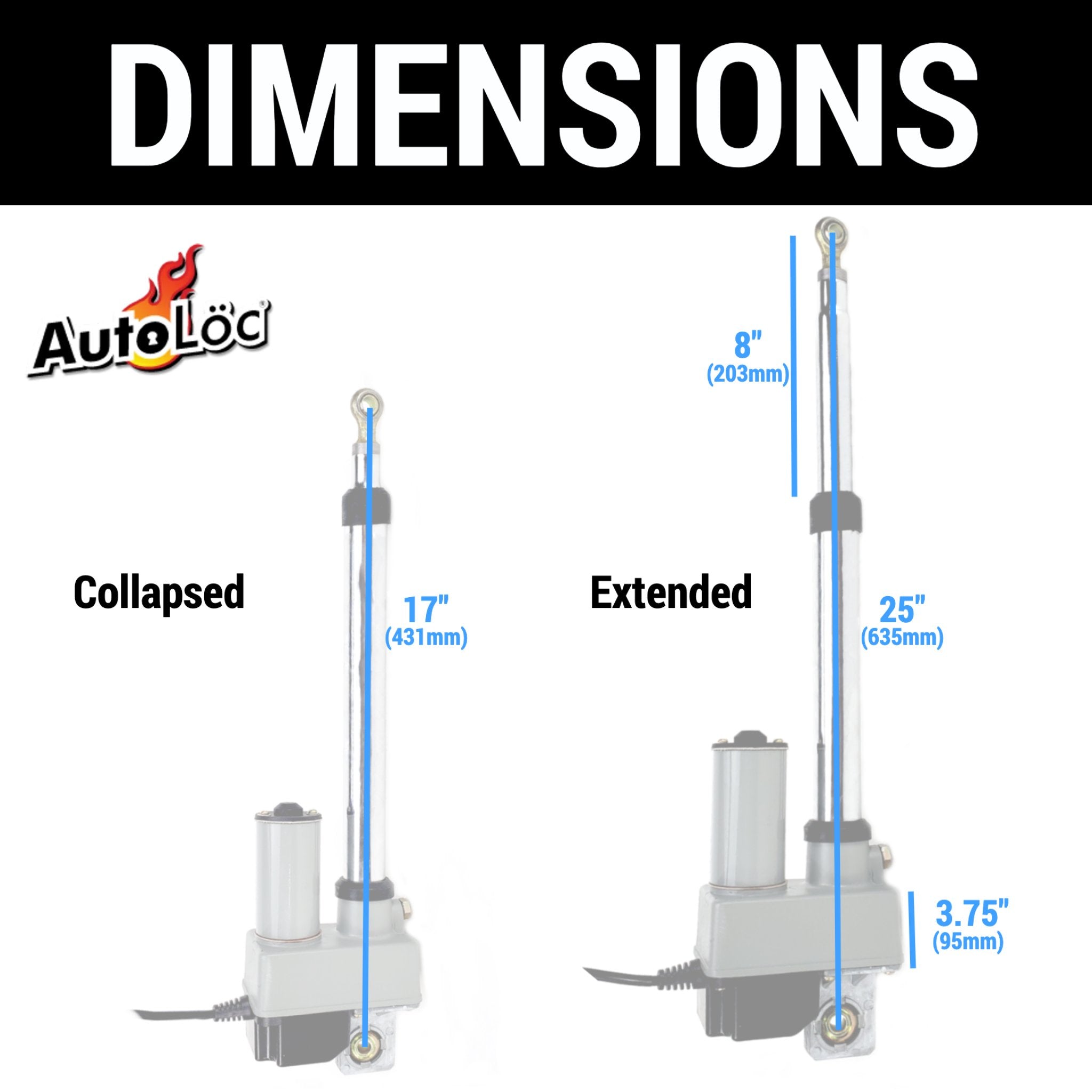

Collapsed :: Length 17"
Extended :: Length 25"
Gear Ratio :: 10:1 Quick Operation
Assembly :: Sealed & Lubricated
Material :: Steel
---------------------- :: Other
Switch :: One 3 Way Included
Relays :: Two Included
Instructions :: Detailed Instructions
Warranty :: Limited Lifetime Warranty
Get Instructions
