Autolöc’s Ultra Compact Universal Waterproof "Frenched" AM/FM HD Automatic Universal Long-Range Radio Power Antenna makes installation a breeze. This kit FITS IN TIGHT SPACES where all other power antennas will not fit - While still delivering the long range performance of a regular power antenna.
- Most Compact Sealed Power Antenna Available
- Signal Boosting
- Water Proof Impact Resistant Case
- High Torque Motor
- Five Section Chrome Mast

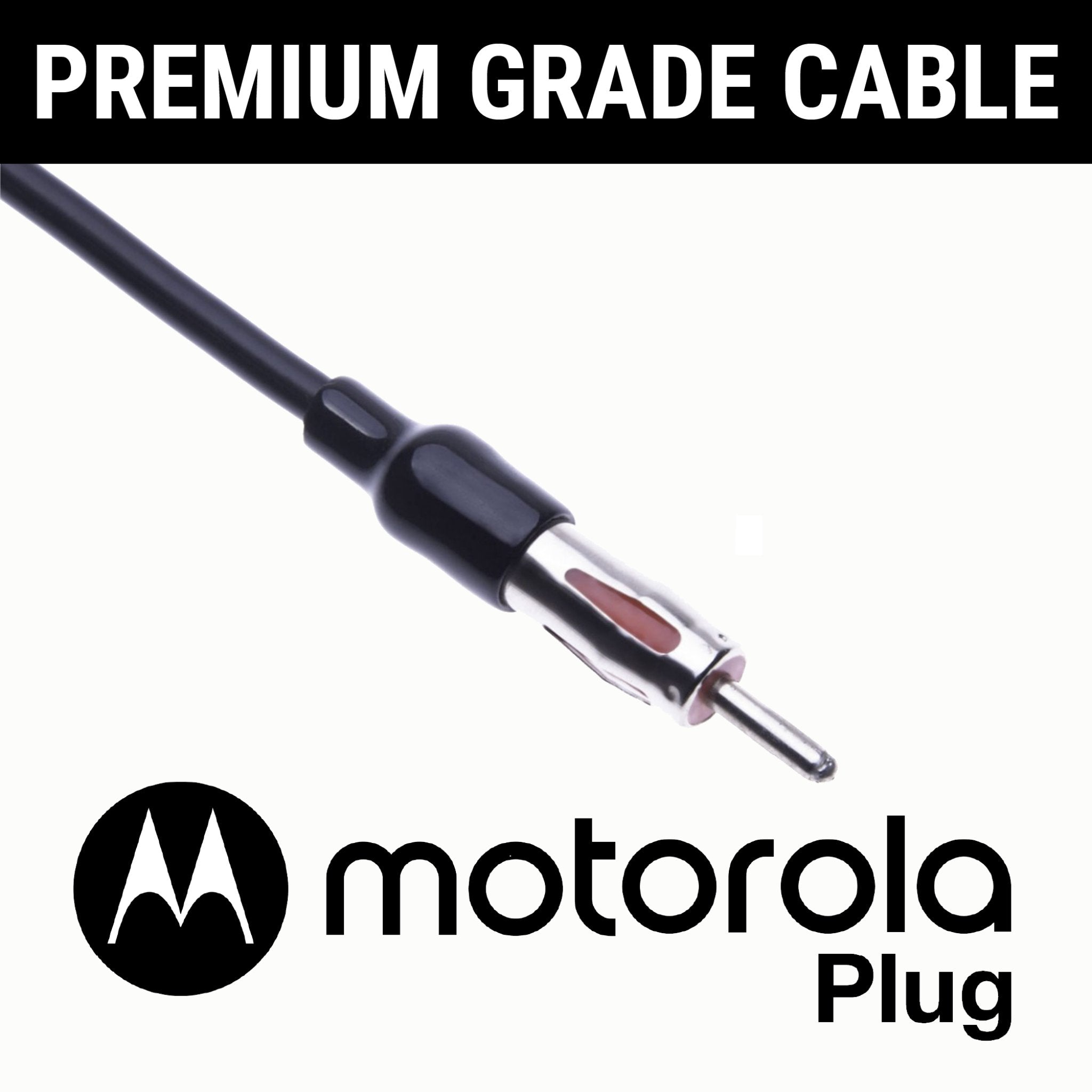

- Motorola Type Antenna Cable Included
- Highest Quality Conductive Metals Available
- Plug N Play / Easy Installation
Autolöc’s automatic power antenna packs all of the features you expect into a small package that is perfect for tight installations. Don’t let it's size fool you. We use the same size motor in our larger units and enclose them in a tough waterproof shell for a long life of service.
The universal fit kit includes an all metal tube for your Frenched install. This tube includes drain holes and can be trimmed to accommodate different angles. We also include custom mounting heads to accommodate for a wide variety of installation types. Mount on Fenders, Trunks, Quarters, or just about anywhere! Note: Some waterproofing may be required depending on mounting location.
This unit is easily installed with just 3 wires and can be powered up on ignition or when you turn on your radio. Includes all wiring, a long Motorola type antenna cable, and mounting hardware.
We engineer all of our antennas to maximize signal strength based on their size. We use the most conductive materials available with the highest gauge metal without compromising frequency range. The Automatic Power Antenna is fully RDS compatible and works with existing emergency networks to ensure you receive emergency notifications when they are most important.
Easy to install, Plug-N-Play with detailed instructions, Free Live USA Technical Support, and a Limited Lifetime Warranty.
Application :: Frenched Power Antenna
---------------------- :: Antenna
Voltage :: 12 Volt
Current Draw :: 0.7A ± 0.2A
Motor :: Heavy Duty Sealed
Bands :: AM / FM / HD
Mast Material :: SUS304 Stainless Steel
Collapsed Length :: 14.5” (368mm)
Extended Length :: 30" (760mm)
Tip Mounting Angles :: 3, 8, 15, 23 or 30 Degrees
Base Material :: High Impact Resin
Base Thickness :: 2” (50.8mm)
Base Height :: 6.5” (165mm)
Base Width :: 3.5” (89mm)
Cable Length :: 47.25" (1200mm)
Cable :: 75 Ohms
Cable Plug :: Motorola
---------------------- :: Tube
Material :: Steel
Modifiable :: trim to fit / Customize depth
Length :: 4" (101.6mm)
Width :: 1-1/8" (28.575mm)
Warranty :: Limited Lifetime Warranty
Get Instructions
|
Item ID |
SKU |
|
AUTPACF |
790410 |
