SKU: AUTRA1000

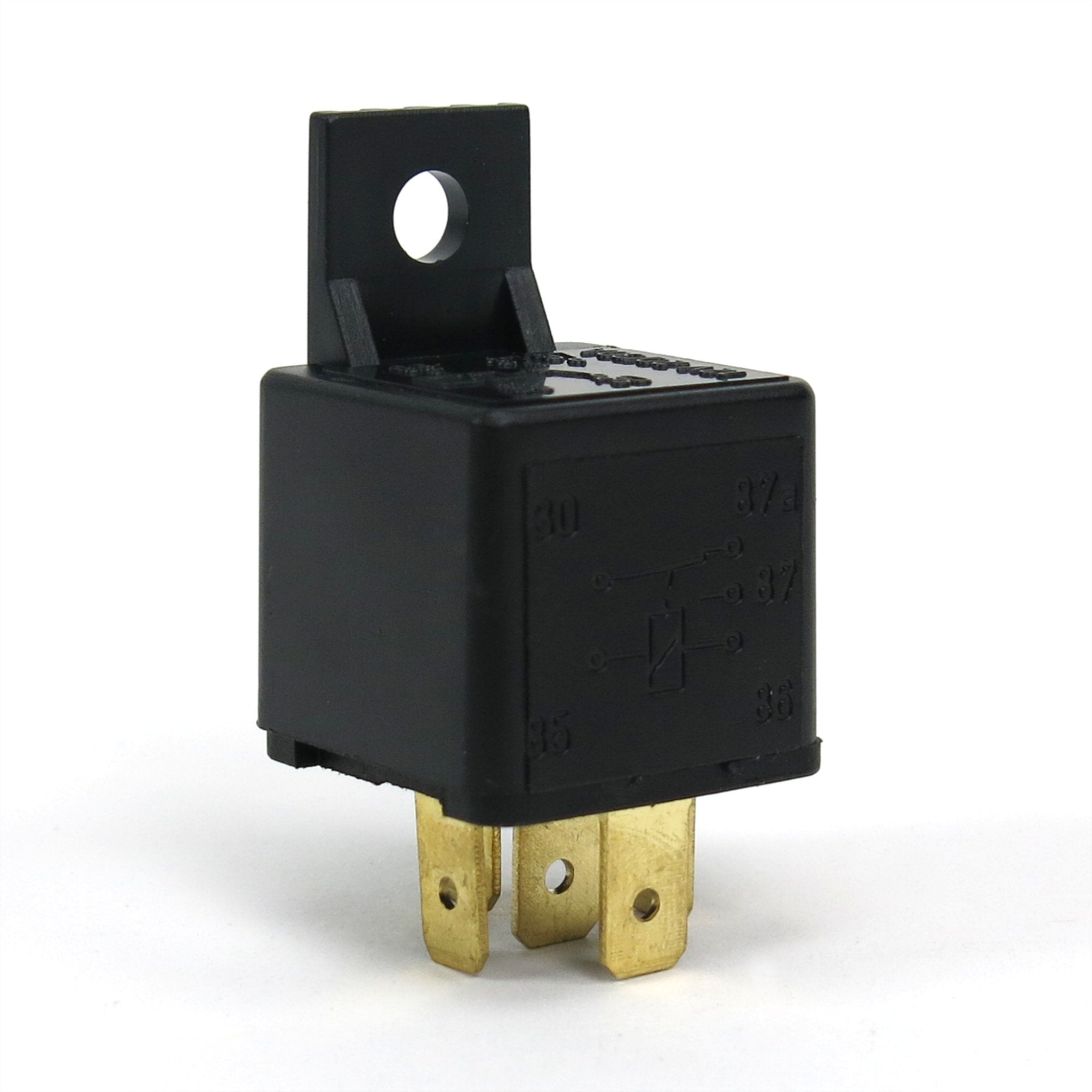

Heavy Duty 40A 12V DC 5-Pin SPDT Automotive Relay with Mounting Tab Universal

Sale price
$19.95
Regular price
$25.94

Frequently Bought Together

Fast Shipping!

Most orders ship out within 24 hours

Description
AutoLöc's heavy duty 40-amp automotive relays are your best choice for all your 12V needs. Designed to handle both normal and high automotive currents, AutoLöc's single pole double throw 40-amp relays will never get stuck or short out.

FEATURES:
- Heavy Duty 40 Amp
- 5 Terminals / 5 Pin
- 12 Volt DC
- SPDT
- Water resistant sealed case
- Convenient mounting tab for 1/4” fastener.

Professionally tested and certified for a long life of smooth operation at any temperature. Up to 50,000+ cycles.

AutoLöc relays are ideal for controlling any 12V accessories such as; Power Door Lock Actuators, Power Trunk/Hood/Hatch Solenoids, Linear Actuators, Air Compressors, Cooling Fans, Headlight Controllers, Cooling Fans, Power Windshield Wipers, and more!

This SPDT relay / electromagnetic switch consists of:
Coil Terminals :: 85 and 86
Common Terminal :: 30
Normally Closed Terminal :: 87a
Normally Open Terminal :: 87

When the coil of an SPDT relay is at rest (not energized), the common terminal (30) and the normally closed terminal (87a) have continuity. When the coil is energized, the common terminal (30) and the normally open terminal (87) have continuity.

For easier wiring, we recommend adding a 5 pin relay socket harness plug when installing your relay. AutoLöc's 12" Relay Sockets are the ideal fit for the AutoLöc 40-amp relay. Simply plug the relay into the Plug n Play relay socket, and you’ve just saved yourself hours of wiring time.

Includes Free Live USA Technical Support and a Limited Lifetime Warranty.

Peak Amps :: 40
Voltage :: 12v DC
Terminals :: 5
Terminal Type :: Blade
Retention Spring :: 2X
Contact Style :: SPDT (Single Pole, Double Throw)
Contact :: Brass
Designed For :: Heavy Duty Operation
Quality :: Heavy Duty
Power Consumption :: Low
Low Heat :: Yes
Sealed Case :: Water Resistant
Compact Size :: Yes
Relay Height :: 2.125" (54mm)
Relay Height without Mounting Tab :: 1.5" (38mm)
Relay Width :: 1.125" (29mm)
Relay Depth :: 1.25" (32mm)
Tab Height :: 0.625" (19mm)
Mounting Style :: Tab Hole .25" (6.3mm)
Terminal Height :: 0.432" (11mm)
Terminal Width :: 0.250" (6mm)
Quantity :: Each (1)
Wiring Harness Included :: No
Installation :: Easy with Basic Tools
Instructions :: Detailed Instructions
Warranty :: Limited Lifetime Warranty

Get Instructions
Item ID SKU
AUTRA1000 89718
