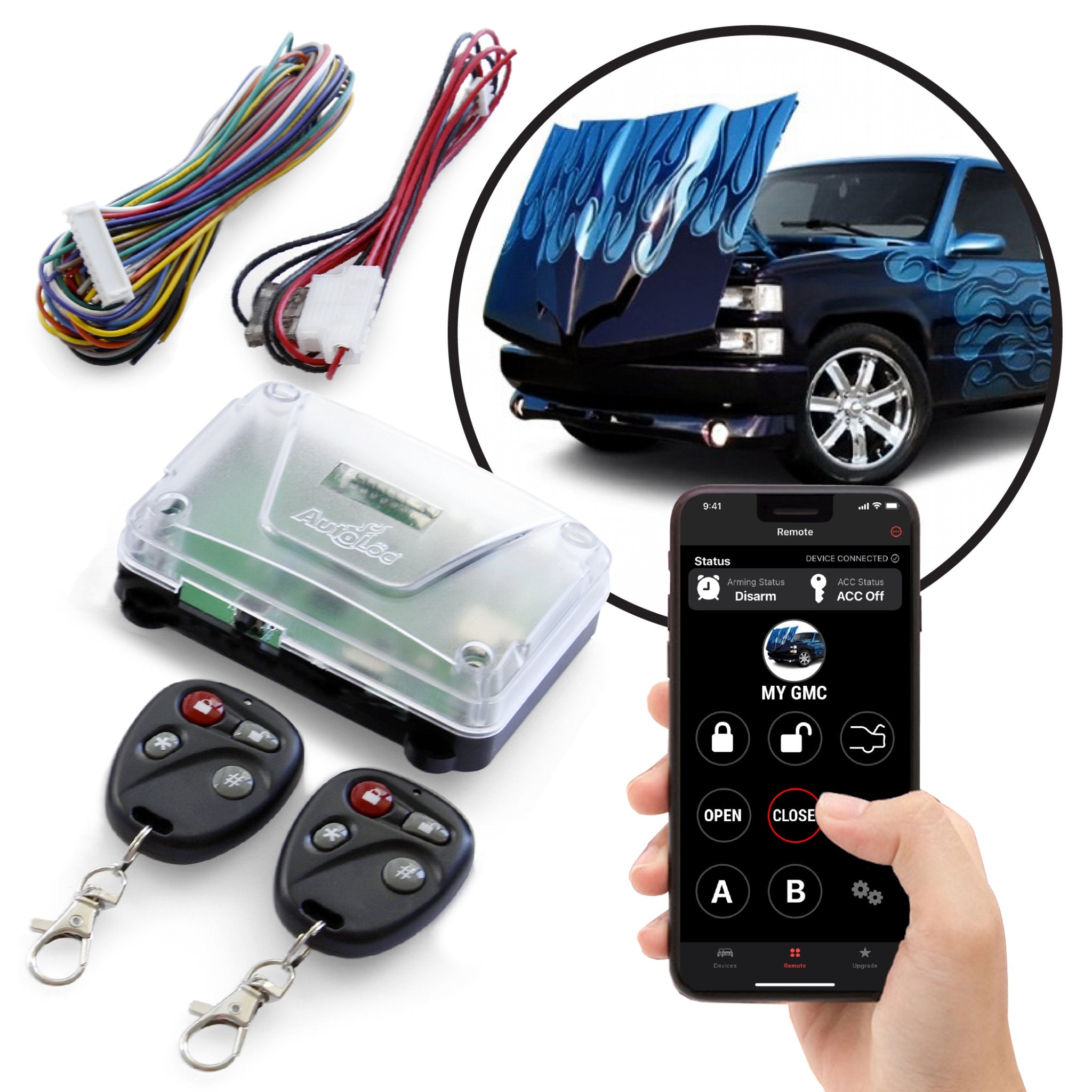

AutoLöc’s Universal Heavy Duty Automated Power Tilt Hood Hinge Kit with Remote, Bluetooth App and Switch Button Control allows you to reverse the opening of your hood, while also giving you the ability to open and close with the simple push of a button. Kit includes one 12V Up/Down Switch Button for interior control and a Remote Control Keyless System with 2 Key Fobs to control from the outside of your vehicle or smartphone app. Simple One-Touch Open and Close Operation.
This kit works as a direct bolt-on for 1988 - 1998 Chevy and GMC Pickup Trucks, but will also work on most other hoods with minor modifications. Structural reinforcement recommended for lightweight fiberglass hoods.

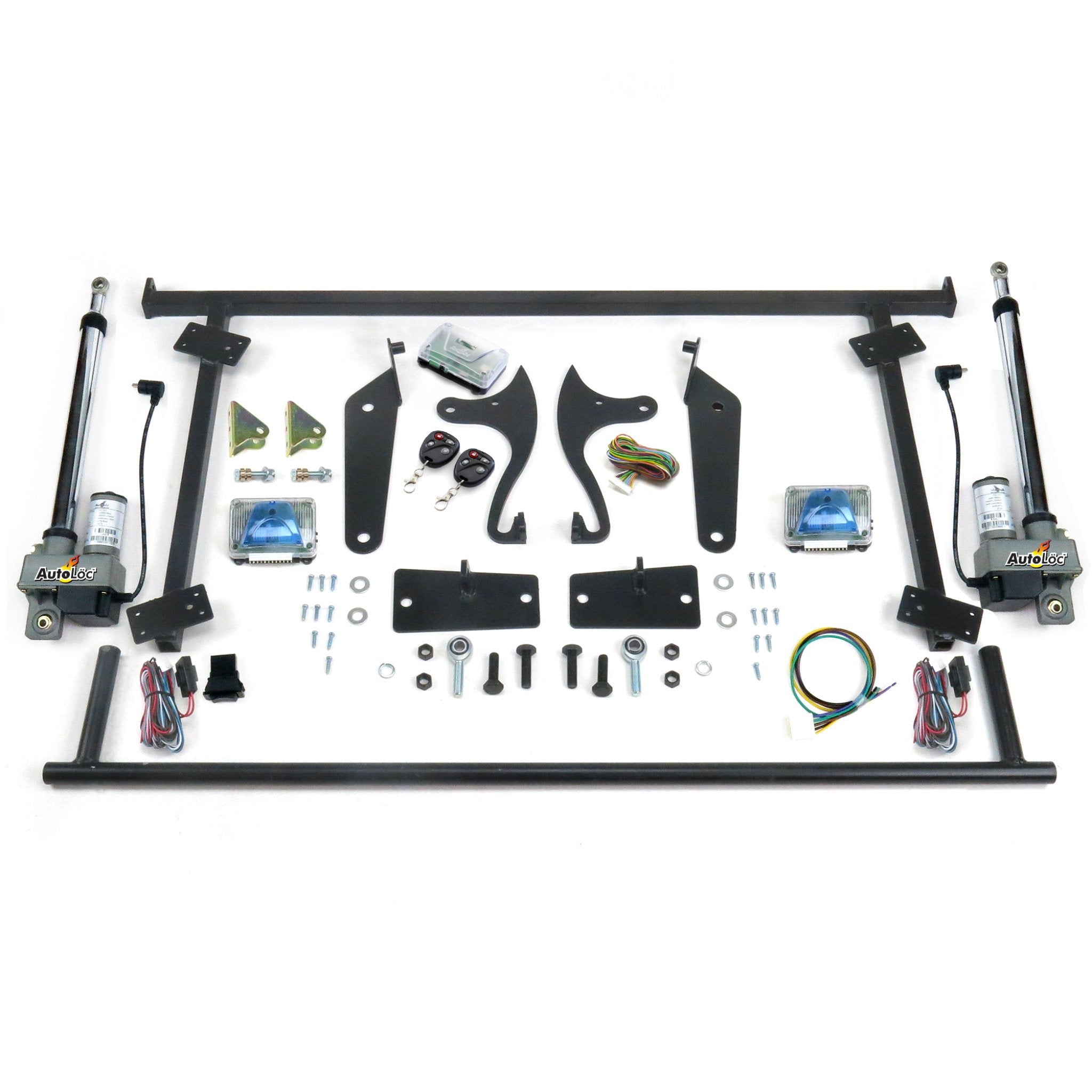

INCLUDES:
- 1 x Tilt Hood Hinge Set
- 1 x 8 Function Universal Keyless Entry with Two Remotes & Bluetooth App
- 1 x Push Button Switch with Up/Down Arrows & Switch Harness
- 2 x Heavy Duty 200lb Lift Linear Actuator Motors
- 2 x Programmable Linear Actuator Control Modules

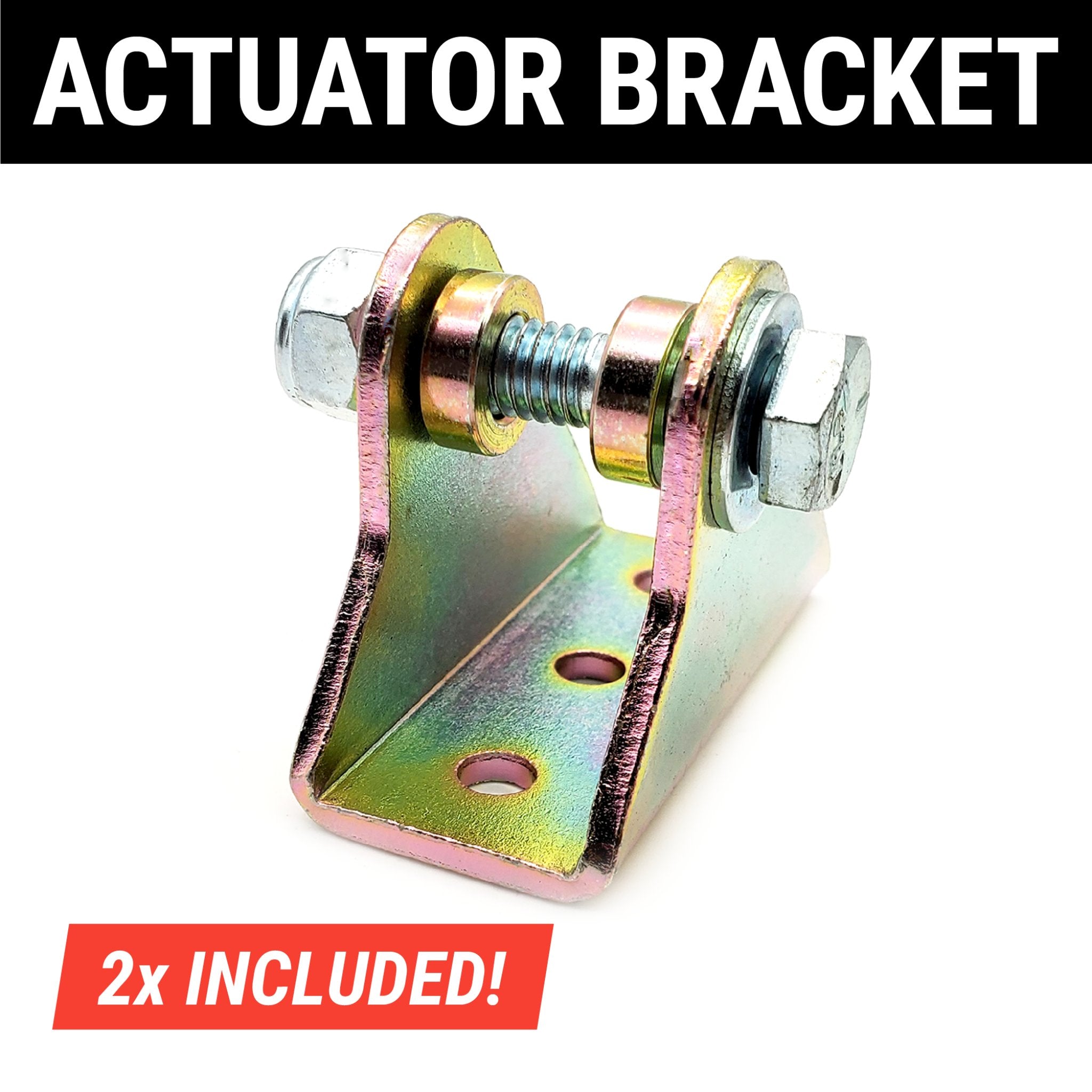

- 2 x Linear Actuator Mounting Brackets
FEATURES:
- Heavy Duty All Steel Hinge Construction Motors
- Flat Black Finish Hinges
- Adjustable Hood Hinges
- Universal Fit - Bolt-on for 1988 - 1998 Chevy and GMC Pickup Trucks
- Hood Frame 29” center to center
- Overall Width 35”
- Heavy Duty 200lb Lift Motors
- Detailed Instructions
- Free Live USA Technical Support
- Limited Lifetime Warranty
Autolöc’s FREE Phone App* includes 3 Channels. Up to 8 Channels available through the App for an additional fee. Remote key fob or Phone App can be used for a variety of functions, such as;
- Lock/Unlock Doors
- Pop Hood, Trunk, Hatch
- Windows Up/Down
- Start/Stop Engine
- Tonneau Cover Up/Down
- and More!
* Additional functions may require additional parts. Subscription Fee Required to Program Time Settings on Phone App.
Note: Vehicle must have existing power door lock/window system in order to use remotes/phone app for keyless entry. AutoLöc Power Door Lock and Central Locking Systems available. SOLD SEPARATELY.
* For Manual Tilt Hood Kits, please see AutoLöc SKU: 9621.
Operation :: Power
Remote Operation :: Yes
Material :: Steel
Finish :: Flat Black
Bolt On :: 1988-1998 Chevy Truck
Bolt On :: 1988-1998 GMC Truck
Hood Frame :: 29" Center to Center
Long :: 17 7/8"
Overall Width :: 35"
Hinge Length :: 33" Center to Center
Application :: Universal
Adjustable Hinge :: YEs

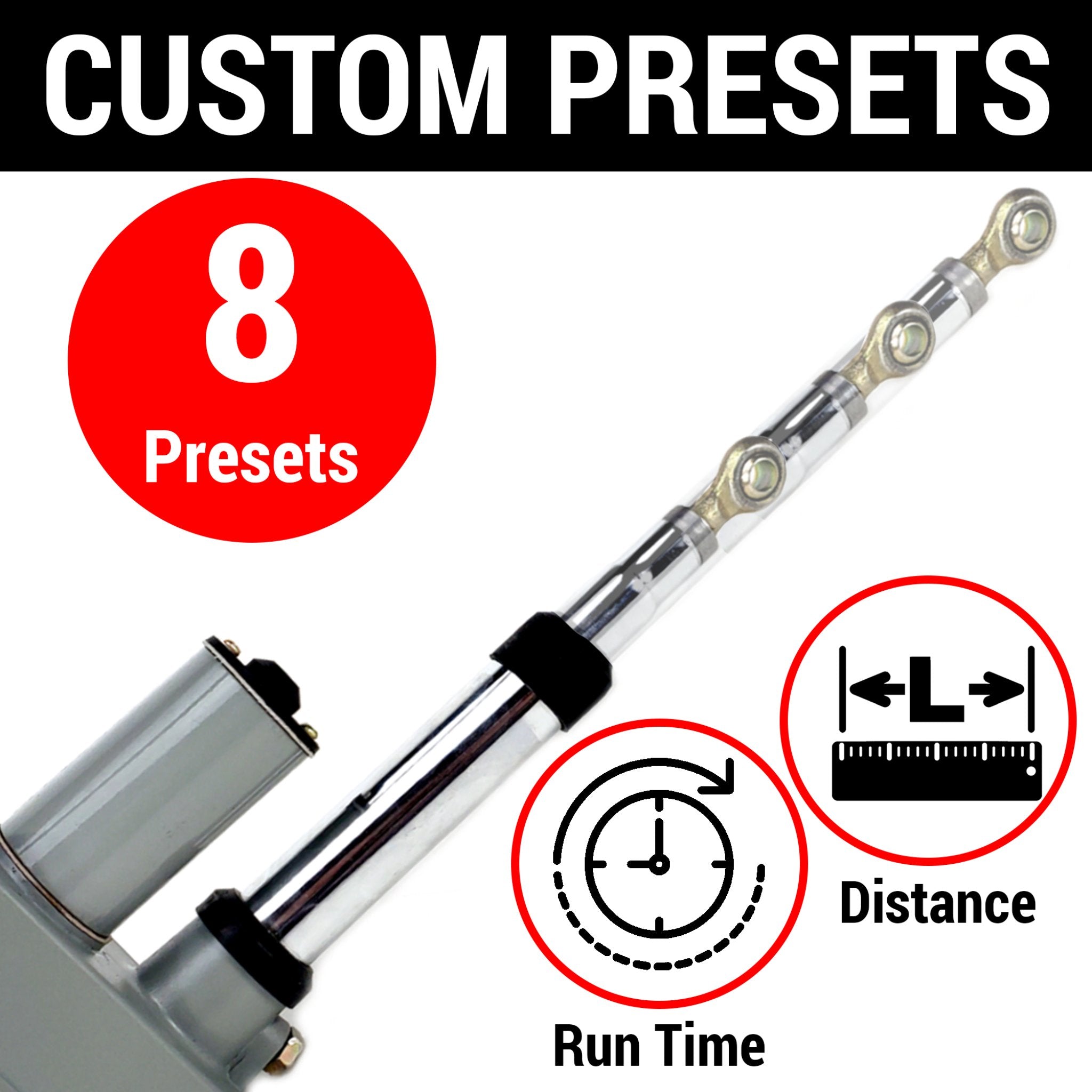

---------------------- :: Linear Actuators
# Included :: 2 Units
Max Weight :: Each Lifts up to 200lbs
Motor :: Heavy Duty Torque
Method :: Screw Drive
Adjustable :: Yes
Limiter :: Built In Switch
Travel/Stroke :: 8"
Collapsed :: Length 17"
Extended :: Length 25"
Base :: Length 3 3/4"
Gear Ratio :: 10:1 Quick Operation
Assembly :: Sealed & Lubricated
Material :: Steel
Connecting Ends :: Bearing Rods
---------------------- :: Keyless Entry
Channels :: 8
Bluetooth App :: Yes
# of Remotes :: 2
Voltage :: 12 Volts DC
Start Disable :: Yes
Harness :: Plug-N-Play
Code Rolling :: Yes
Lock/Unlock :: Yes
Fuse Protection :: Yes
Long Range :: Yes
Bluetooth App :: Yes
Universal :: Yes

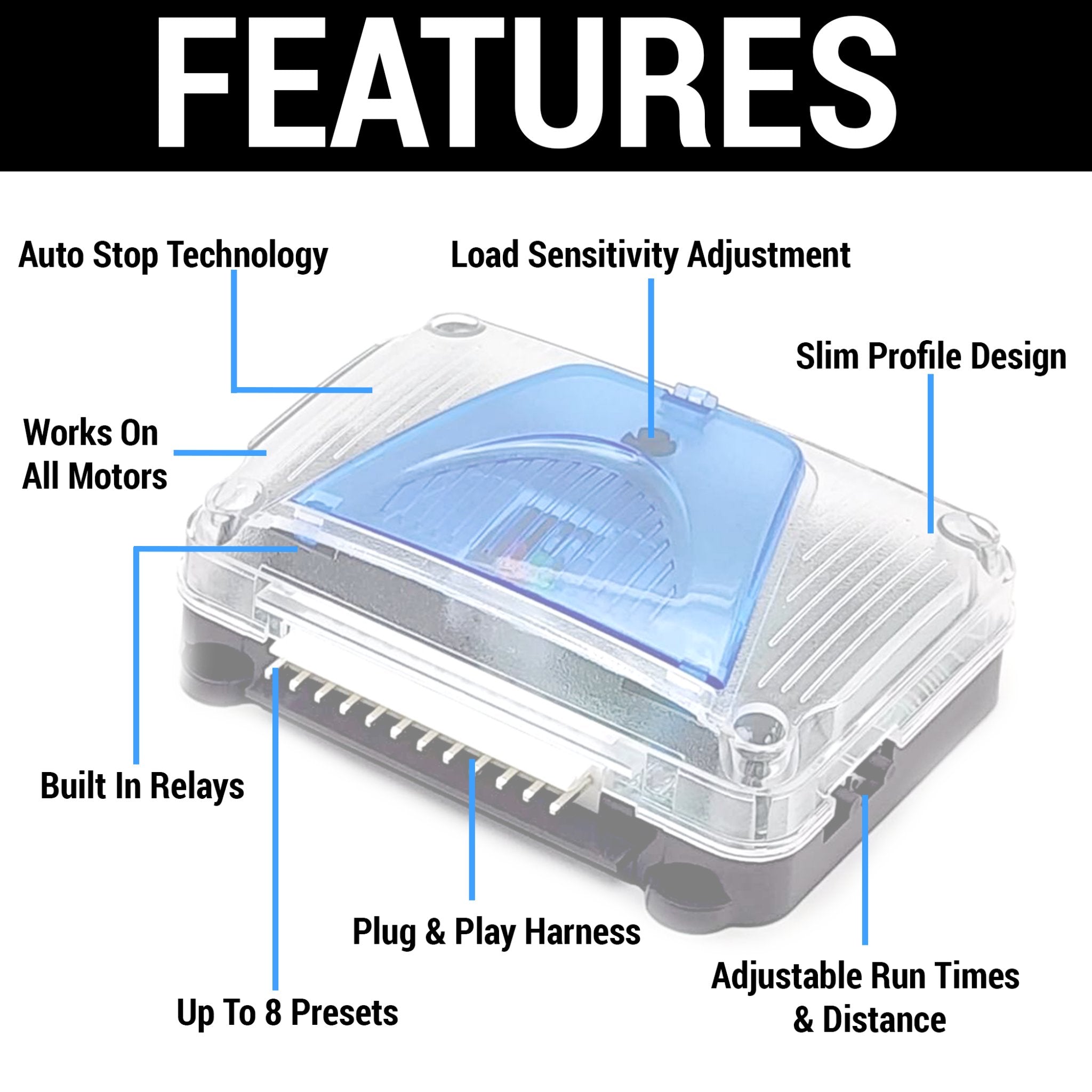

---------------------- :: Motor Control Units
# of Units :: 2 included
Presets :: 6
Programable :: Yes
Wiring :: Plug-N-Play
Compatibility :: Ideal for Linear Actuators
Voltage :: 12 Volts DC
Safety :: Auto Stop Feature
Tuning :: Load Sensitivity Adjustment
Length :: 3.612"
Width :: 3"
Height :: 1.25"
Harness Length :: 6.5'
Built in Relays :: Yes
---------------------- :: Other

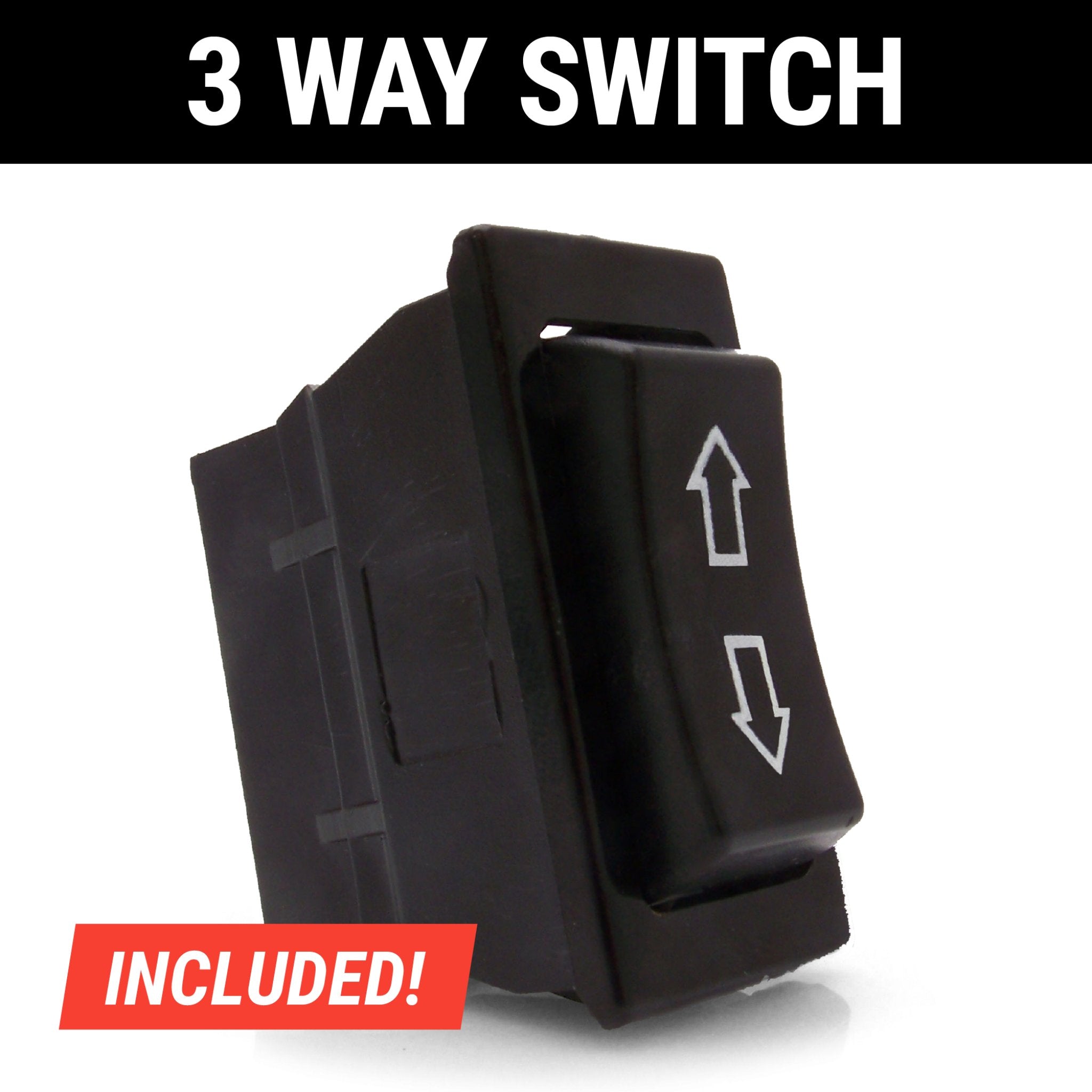

3 Way Switch :: Included
Switch Harness :: Included
Instructions :: Detailed Instructions Included
Warranty :: Limited Lifetime Warranty
