Dress up your door panel with AutoLöc's Billet Aluminum 12V Electric Door Window Crank Handle Switch and Star Design Levers Set. This 2 door kit allows you to open and close your power windows by simply pushing up or down on the window crank lever.
No need to cut to fit switches. AutoLöc’s window crank switches use the same factory crank hole. Levers attach directly to the window crank switch spline. Simply rotate the window crank handle up or down 15° (degrees) to activate your electric power windows!
The designers at AutoLöc put safety first, which is why unlike most other switches on the market, AutoLöc window crank switches have a positive dead lock stop with return-to-center spring design. This heavy-duty mechanism ensures that it won’t break or snap.
Kit works on any vehicle with factory or aftermarket power windows. Ideal for hot rods, street rods, classic, vintage and antique vehicles, custom cars, trucks and more! Optional window crank handle knobs are included with kit, but are not necessary for use. Minor drilling is required to if you choose to use knobs.
* Includes Detailed Instructions, Limited Lifetime Warranty, and Free Live USA tech support.
Kit :: Star Handle Window Crank System w/ Switches
Material :: Billet Aluminum
Compatible :: OEM and Aftermarket Power Window Systems
Design :: Factory Crank Look
----- :: Window Switch Specs
Operation :: 15 Degrees Up / Down Activation
Design :: Ultra Thin
Heavy Duty :: Dead Lock Stop Will Not Break
Handles :: Fits OEM and Aftermarket Crank Handles
Switch Height :: 3" (76.2mm)
Switch Width :: 2.65" (67.31mm)
Switch Depth :: .62" (15.75mm)

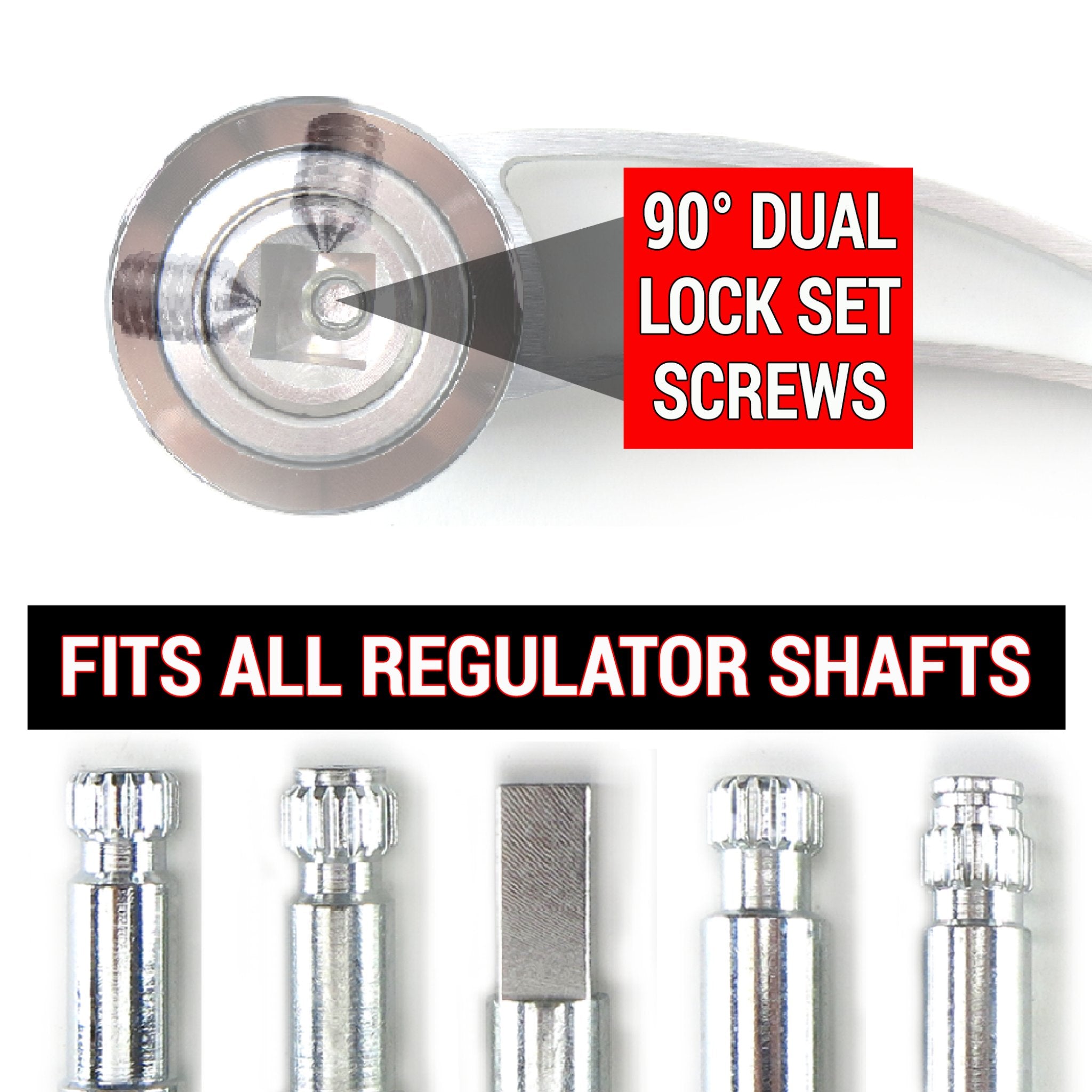

Spline Shaft 1 Fits :: GM / Chevy / Holden (1950 & up)
Spline Shaft 2 Fits :: Early Ford, & Most Early European & Asian Import
Spline Shaft 3 Fits :: 1931-1938 Chevy
Spline Shaft 4 Fits :: 1939-1948 Chevy
Square Shaft 5 Fits :: Early Dodge, Mopar & Included Handles
----- :: Billet Door/Crank Handles
Uses :: Door or Window Crank
Handle Mount :: Any Square or Spline Shaft

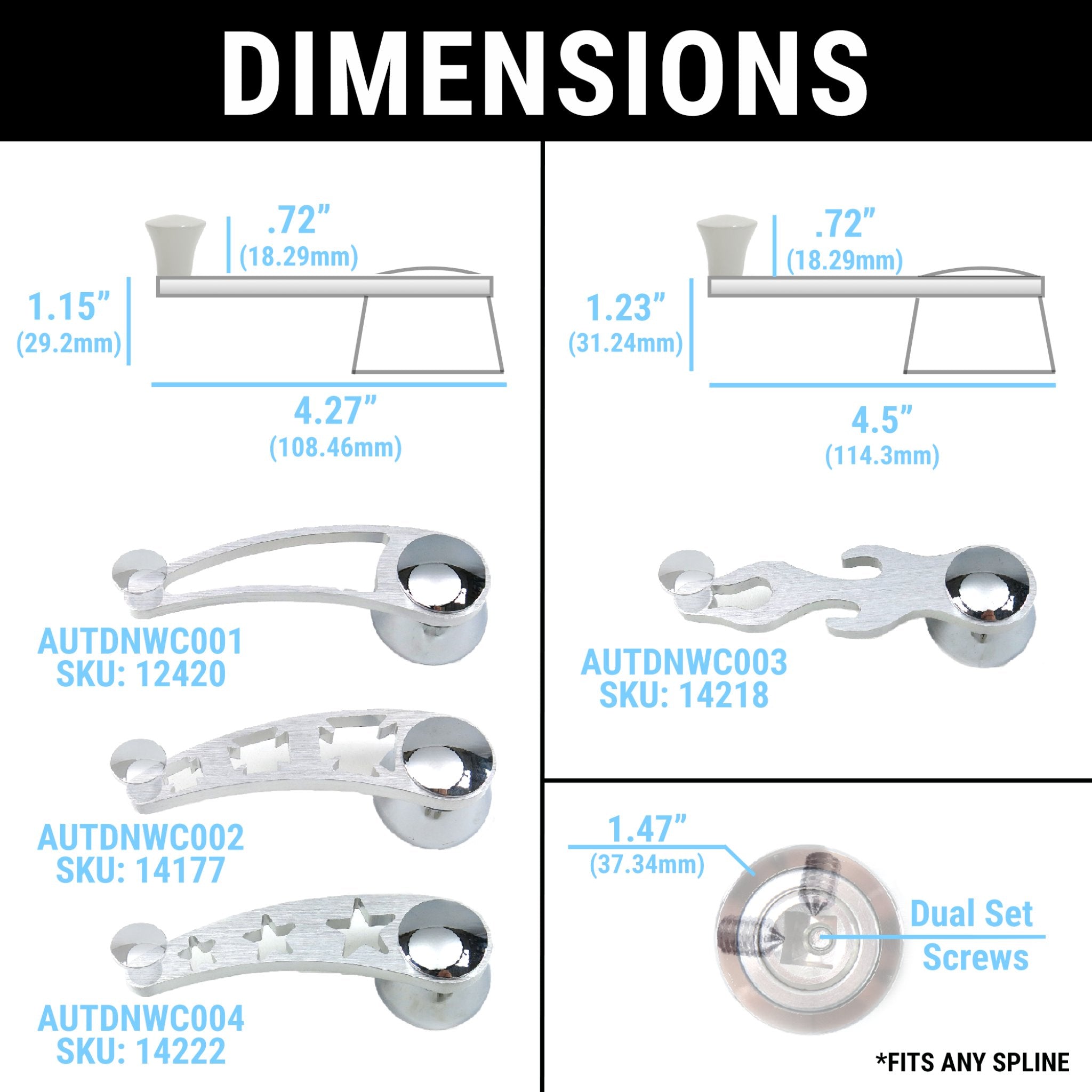

Handle Length :: 4.27" (108.46mm)
Handle Width :: 1.15" (29.2mm)
Handle Height :: 1.87" (47.5mm)
Crank Knob :: EZ Drill Mounting (Pre-aligned)
Designed :: In The USA
Instructions :: Detailed Instructions
Warranty :: Limited Lifetime Warranty
Get Instructions
|
Item ID |
SKU |
|
AUTDNWC004S |
315546 |
