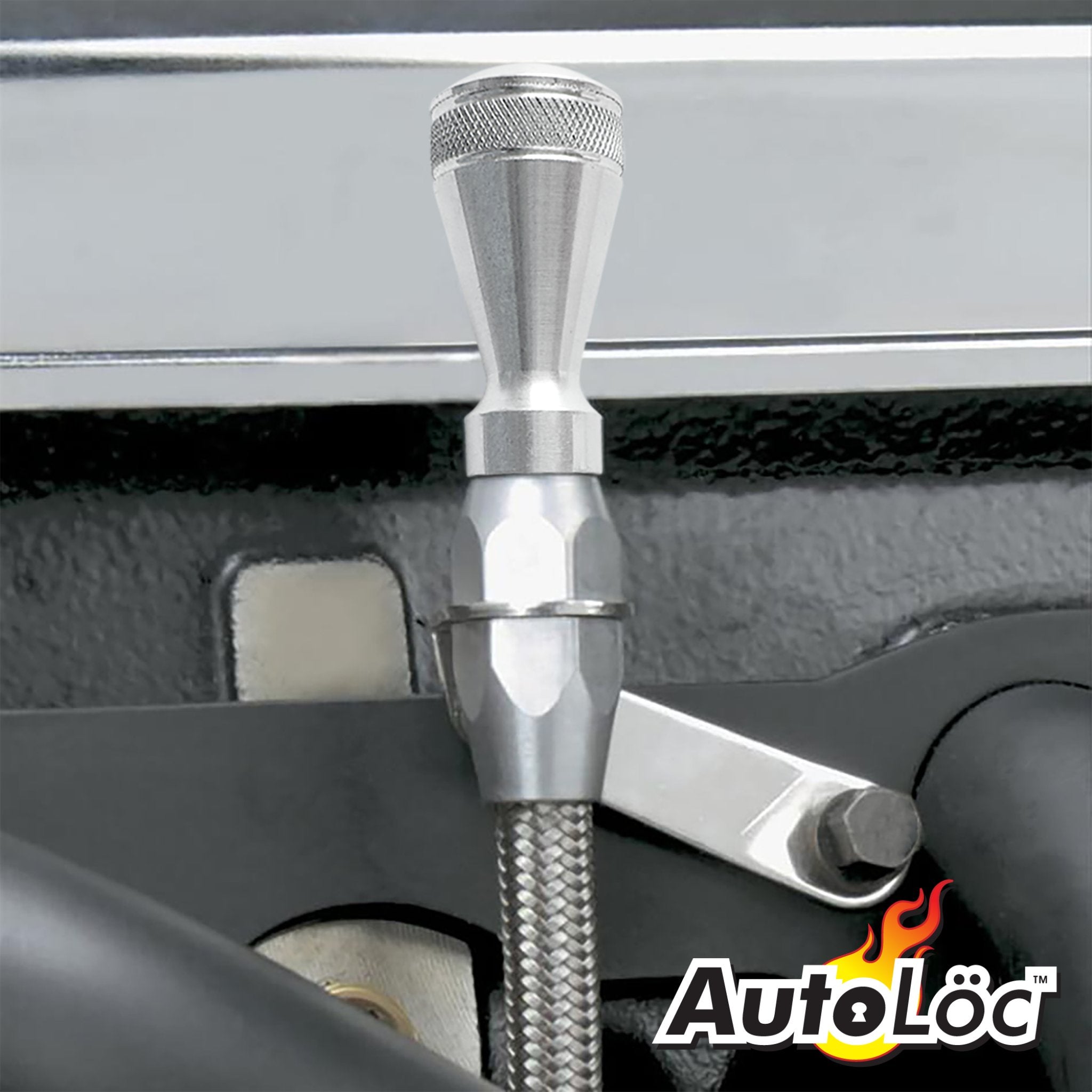

Autolöc Billet Aluminum Engine Dipsticks are engineered for both aesthetics and functionality, featuring a Teflon®-lined braided stainless steel dipstick housing that provides a sophisticated look while ensuring rugged strength and extreme heat tolerance.

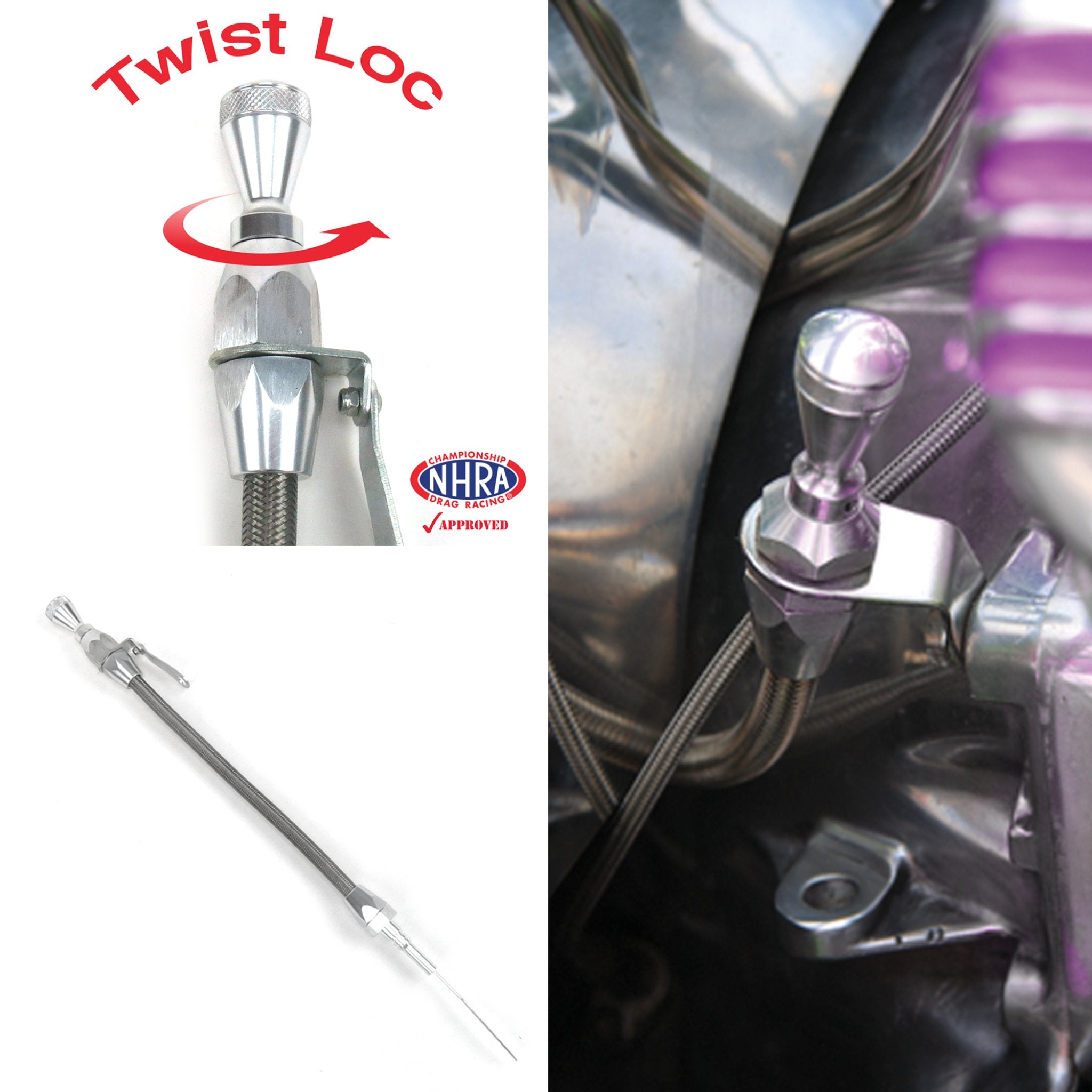

The flexible inner dipstick measuring cable is designed for easy readability, allowing for precise measurement of engine oil levels. Each dipstick is equipped with a Twist Lock top to securely engage the locking mechanism, ensuring reliability during operation.
These dipsticks are designed to mount in the stock location on the engine and come with an easy-to-install mounting bracket, available in either a sleek black or brushed finish to suit various engine aesthetics. Matching Transmission Dipsticks available.
NHRA accepted for use in all categories of competition!
Fits all LSX applications - 4.8 5.3 6.0 Gen III IV V 1996-2014
All Autolöc parts are offered with a Limited Lifetime Warranty. For more information please contact your Autolöc dealer or visit our website.
----- :: CHEVY GM ENGINE OIL DIPSTICK
Application :: GM V8 LS, SBS, BBC
Type :: Engine Oil
Mount :: Push Into Block
Measures :: Engine Oil Levels
Material :: Aluminum
Finish :: Billet
Outer Housing :: Teflon-Lined Stainless Steel
Twist Lock Knob :: Secure Locking Mechanism
Knob Type :: Domed
Adjustable :: Yes
Easy Install Mounting :: Yes
Measuring Cable :: Easy-to-Read
O-Ring Seals :: Yes

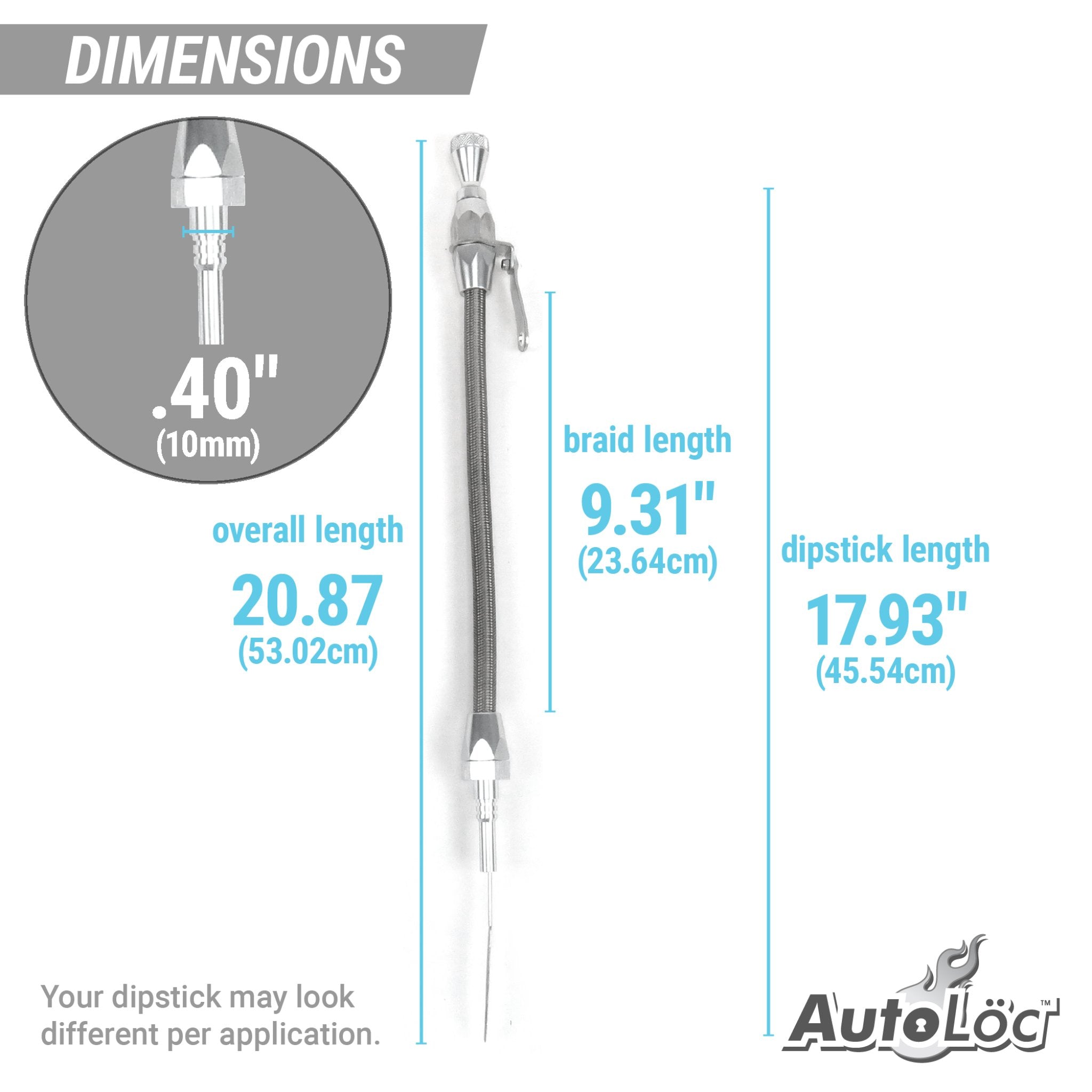

----- :: DIMENSIONS
Overall Length :: 20.87in (53.02cm)
Braid Length :: 9.31in (23.64cm)
Dipstick Length :: 17.93in (45.54cm)
Diameter :: 0.40in (10mm)
----- :: OTHER
NHRA Approved :: Yes
Design Location :: USA
Warranty :: Limited Lifetime Warranty
Get Instructions
| Finish |
Item ID |
SKU |
| Silver Aluminum |
AUTEDP5 |
9918 |
| Black Anodized |
AUTEDB5 |
15948 |
